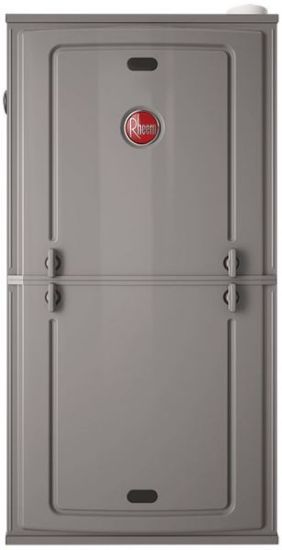

Rheem R951V0403A17M4SCAP Endeavor Line Classic Series 40 MBH Single Stage Multi-Position Gas Furnace
The Rheem furnace offers reliable heating with a 95% AFUE rating, making it an energy-efficient choice for your home. Designed for easy installation and maintenance, it features advanced technology like Bluetooth diagnostics which simplifies troubleshooting. With its quiet operation and constant CFM motor, this furnace not only keeps your space comfortable but does so efficiently, ensuring you get value with every use.
Features
- PlusOne Energy Efficiency: ENERGY STAR certified, featuring 95% AFUE across all model sizes
- PlusOne Diagnostics: With the Rheem Contractor & EcoNet Apps, built-in EcoNet & Bluetooth technology makes monitoring, troubleshooting and repairing the product easier than ever before
- Dip Switch Free Installation Commissioning via Bluetooth Technology: Seamless final install step without DIP switch configuration using the Rheem Contractor App
- PlusOne Ignition System: Proven Direct Spark Ignition (DSI) for reliability and longevity
- PlusOne Water Management System: Rheem-exclusive patented block drain sensor that automatically shuts off the furnace when the drain is blocked, and also alerts the contractor via diagnostic code
- Constant CFM Motor: Truly variable speed technology allows for ultimate humidity control, quieter sound levels and year-round energy savings
- Quieter Operation: A fully insulated blower cabinet, solid bottom and truly variable speed airflow technology makes this furnace one of the quieter options available
- EcoNet Enabled Furnace: The latest in sensor technology and the EcoNet monitoring system provides a new level of protection, control and energy savings
- Allows on-the-go Control and receipt of system alerts by the homeowner via the EcoNet Smart Thermostat and EcoNet App
| Fuel Type | Liquid Propane Gas; Natural Gas |
| Phase | Single Phase |
| Refrigerant | R-410A |
| AFUE | 0.95 |
| AMP | 5.8;10;15 |
| BTU (btu/hr) | 40000 |
| BTU Heat Rating | 39900 |
| CFM | 990 |
| Communicating | Communicating |
| Configuration | Multi-Position |
| Depth | 28-1/6 in. |
| Energy Star Compliant | Yes |
| Green Product | Yes;Energy Star |
| Height | 34 in. |
| Horsepower | 1/2 hp |
| Ignition System | Direct Spark Ignition |
| MBH | 40 |
| Material | Stainless Steel;Steel |
| Max CFM | 1240 cfm |
| Power Source | Gas |
| Specifications - ANSI | ANSI Z223.1 |
| Stages | Single |
| Style Name | Endeavor Line Classic Series |
| Tonnage | 3 Tons |
| Product Type | Furnaces |
| Vent Type | B-Vent |
| Volts | 115V |
| Width | 17-1/2 in. |
